16CH DVR 5M Bullet Camera Kit (8/12/16)
16CH DVR 5M Bullet Camera Kit (8/12/16)
16CH DVR 5M Bullet Camera Kit (8/12/16)
16CH DVR 5M Bullet Camera Kit (8/12/16)
16CH DVR 5M Bullet Camera Kit (8/12/16)

16CH DVR 5M Bullet Camera Kit (8/12/16)

$2,389.00 USD

BRAND NEW ITEM

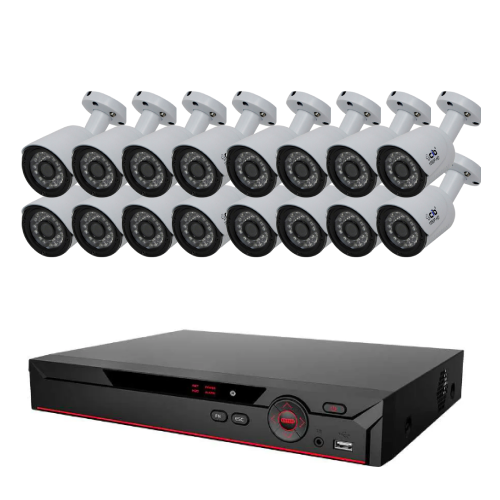

FULL HD 16CH 5-MEGAPIXEL  DVR 16X5MP BULLET CAMERAS PACKAGE 4TB HDD

MODEL J5MP16K-4T56W16KIT

PACKAGE CONTENTS

  • One 16 CH Full HD 5MP DVR plus 8CH HD IP Input With Network Connection
  • 16 Full HD 5-Megapixel Day Night Infrared Bullet Color Cameras
  • 16x65FT HD cable with Power Wire
  • If you need more video cable, please send email to us
  • USB Mouse, Network Cable
  • 16CH 10Am power supply.
  • Smart P2P Auto Connection with QR Code Scan
  • Smartphones and Tablets Remote viewing Software
  • PC Client Software for Remote Access Camera over Internet
  • 4TB Hard disk drive is included.
  • One Year Full Warranty in USA

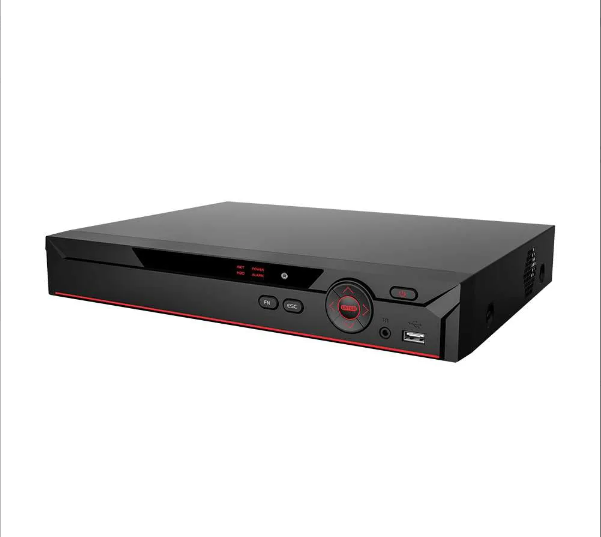

DVR Model J5MP16K

DVR Features
1. 16CH HD 5MP DVR plus 8CH HD IP Input to connect IPC. All 16 channels in High Resolution 5MP Recording and Display and with 5MP Video Playback. Super High Resolution HDMI/VGA Output up to 8M / 4K , 16xAudio Inputs and one Audio Output.

2. This 5MP DVR system is very easy to install, just plug in and play, same as traditional CCTV Analog system. This DVR System fully compatible with all of your existing CCTV analogy cameras and cables, so it is very easy to upgrade your existing CCTV system to a new HD 5MP system. No more network infrastructure and setup harass.

3. Spot Monitor management.

4. External ESATA Supports HDD up to 32TB

5.Free mobile App and PC client software. Smart P2P Auto Connection with QR Code Scan, no router or DDNS set up is required. Support iPhone, Android and PC, Mac Access live view via Internet using browser.

DVR SPECIFICATION

  • Video System: NTSC / PAL (switchable)
  • Video Compression Format: H.265
  • Video Input: 5MP 16 Channels. Composite video signal 1 Vp-p 75O BNC
  • Video Output: HDMI/VGA Up to 8MP / 4K
  • Video Recording Resolution: 5MP
  • Image Quality Setting: Best, High, Normal and Basic
  • Hard Disk Storage: SATA type, supported SATA*2, capacity over 16TB
  • External ESATA supports the HDD up to 32TB
  • Recording Mode: Manual / Timer / Motion / Alarm / Remote
  • Audio I/O : 16 audio input, 1 audio output (Mono)
  • Motion Detection Area: 30 × 44 grids per camera for all channels
  • Motion Detect Sensitivity: 8 adjustable Level
  • Pre-alarm Recording: Yes (8MB)
  • Backup Device: Network remote backup
  • Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
  • Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
  • PTZ control: Support PELCO-D PELCO-P protocol, Coax Control
  • Remoter Control Yes
  • Alarm I/O: 8 inputs, 1 output
  • Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
  • Key Lock: Yes
  • Video Loss Detection: Yes
  • Camera Title: Support up to 6 letters
  • Video Adjustable: Hue / Color / Contrast / Brightness
  • Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
  • Power Source: DC 12V
  • Power Consumption: <42 W
  • Operating Temperature: 10" ~ 40" (50"~104")
  • Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
  • Weight: 3Kg



 Camera Model: T5MP56W

CAMERA FEATURE

  • Full HD 5Megapixel Analog Bullet Color Day Night Camera
  • Professional Night Vision for enhanced low light performance
  • Night Vision up to 80ft away in dark condition
  • Weatherproof rated housing for indoors & outdoor installation
  • Robust vandal resistant housing with cable pass through bracket

CAMERA SPECIFICATION

  • Image Sensor : Full HD 5M Pixel
  • Video Format : NTSC
  • Effective Resolution : 5MP
  • Min. Illumination : 0.0Lux/F1.2
  • Recording Resolution: 5MP
  • IR LED : up to 80ft
  • Lens : 3.6mm Lens
  • Operation temperature : 5-120°
  • Termination : BNC Type
  • Power supply : DC 12V 500mA
  • Dimensions(mm) : 60(D)x160(H)
  • Weight(g) : 400g
